SS304 SS316 SS321 Wedge Wire Filter Screen Pipe, Stainless Steel Screen Tube
Wedge Wire Filter Screen Pipe, Stainless Steel Screen Tube Description
wire water well screens, wire wrapped screens pipe, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot screen, water filter element, screen cylinders, v wire slot tube, reverse rolled screen, wedge wire strainer pipe, johnson well screen, johnson wire screen, johnson screen tube, johnson screen pipe, johnson filter screen, stainless steel or low carbon galvanized or mild steel wire screen,woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers,strainer screens, wide slit screens, oil screen tube.
Characteristics: welding filter tube is composed of support wires and profile wires.support wire can be wedge wire, round wire, triangle wire or trapezoid wire. Profile wire can be triangle wire(V-shaped wire),with fine slot size and high filtering precision,with frim structure,high temperature and corrosion resistance,good mehanical properities, long serive life,safe and reliable characteristics and so on, water well screen / strainer tube / filter pipe can be used in a variety of media filters.
Usege: water well screen/strainer tube/water filter pipe is water treatment equipment with holes.it can be used with deep well pumps or submersible pumps together;it can be also used for water treatment equipment,environmental protection,desalination processing of transferring sea water to industrial water and domestic water,running water treatment,water sottening process and petrochemical industry:terminal filtration for petrolic products,filtration for chemical acid and soda liquid,and recovery filtration for alcohol and other organic solvents.
Continuous slots signifcantly increase increase discharge area,thus providing greater access to water-beaeing zone. we can produce this pipe with diameter 25mm-1200mm, slot size 0.05mm-30mm, length 50mm-5850mm.
Deep processed
Wedge Wire Screen Panel
Wedge Wire Pipe&Cylinder
Wedge Wire Screen Basket
Wedge Sieve Bend Screen
Wedge Wire Filter Screen Pipe, Stainless Steel Screen Tube Features
The wedge wire filter screen(Johnson screen pipe, Screen Tube) are made of metal wedge wire with Rolling and welding technology, which has the advantages of high mechanical strength, high pressure resistant, easy flushing and regeneration, etc. Nearly two-dimensional filter has no dead spots of particle accumulation, and the wedge-shaped gap is reversed. The backwashing energy can be gathered when flushing, and the backwashing effect is good.
1. The mechanical strength is high and can withstand high pressures;
2. The filter gap is uniform, can form a relatively uniform filter cake, which is conducive to backwash regeneration;
3. The wedge-shaped filter gap can improve the backwash regeneration ability;
4. Prressure, temperature, anti-aging, anti-corrosion, can be applied to filter a variety of fluids.
5. High corrosion resistant;
6. Long-use time;
7. Easy-cleaning
Wedge Wire Filter Screen Pipe, Stainless Steel Screen Tube Application:
The product is especially suitable for waxy oil, asphalt, diesel, beer, and high viscosity oil.
It is widely used in electric power industry, natural gas well, petrochemical industry,chemical industry, mining, paper making, environmental protection, metallurgy, food, sand control, Coarse filtration and fine filtration engineering for water treatment.
Stainless Steel V Wire Wrapped Screen Pipe Use:
Water well
Water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Waste water-treatment &water well drilling,
Oil well drilling, mineral processing,
Refining & petrochemical and other areas
Wedge Wire Filter Screen Pipe, Stainless Steel Screen Tube Specifications:
sizes
(inch) | OD
(mm) | slot
(mm) | Length
(m) | Tenslile
strength | collapse
Strength | wrap wire
vee-shaped wire (Width x height:mm) | support rod
Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.3 x 3.5 | 3.0MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.3 x 3.5 | 3.0MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0 x 6.0 | 5.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3 x 3.5 | 3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0 x 4.6 | 4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.05 x 6.35 | 5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.5 x 4 .0 | 3.8MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0 x 4.6 | 4.5MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2 x 6.0 | 5.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0 x 6.0 | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0 x 5.0 | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
| HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
| HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |

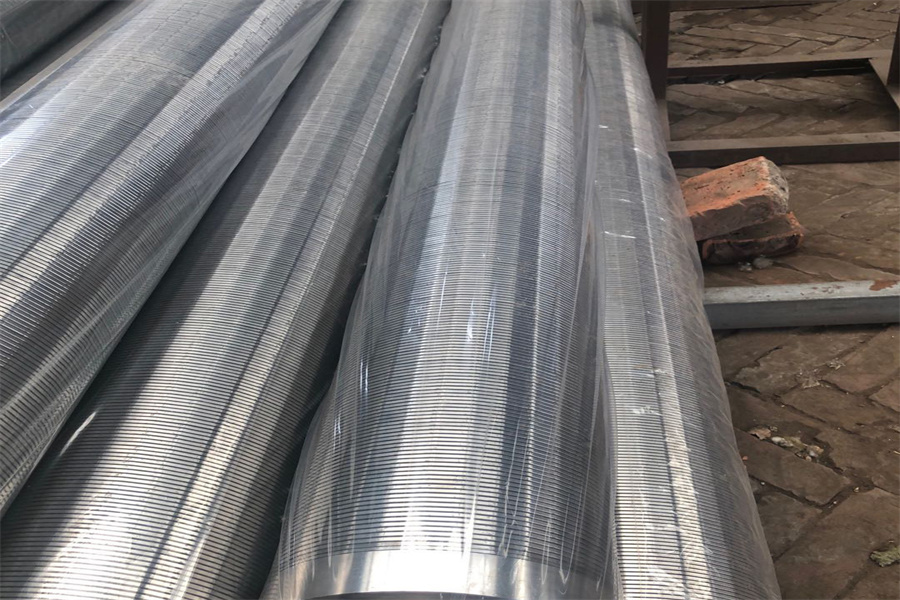

Package of Wedge Wire Filter Screen Pipe, Stainless Steel Screen Tube Pipe:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
